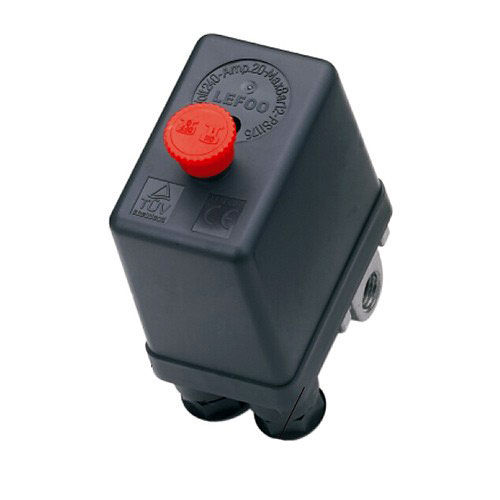

Differential pressure switch LF10-L series

NCNOG 1/4

LEFOO Industrial Co.,Ltd, with professional lf10-l pressure switch (0.5-1.2mpa) factory, is a best China lf10-l pressure switch (0.5-1.2mpa) manufacturers. Welcome to wholesale cheap products from us. The LF10-L pressure switch is a pressure-operated electric switch for use in regulating the tank pressure between two preset values on electrically driven air compressors. It is available with an unloader valve, which prevents compressors from starting under load, and an On-Off button for manual cut off the compressor. A four port manifold style is available which provides a means for easy mounting of valves and gauges. MODEL - LF10-L1H - LF10-L4H Medium - Air - Air Operating Pressure Range - 0.5-1.2Mpa - 0.5-1,2Mpa Differential Pressure - 0.2Mpa - 0.2Mpa Factory Setting - 0.6-0.8 Mpa - 0.6-0.8 Mpa Operating Température Range - -30~55C° C - -30-55° C Electrical Rating - 240V,20A, 50Hz - 240V.20A, 50Hz Contact Arrangement - Normally Open(NC) - Normally Open(NC) Port - one port - four ports Pipe Fittings - G1/4, G 3/8 or 1/4, 3/8 N PT Female - G1/4, G 3/8 or 1/4, 3/8 N PT Fer™ Approval: UL, CUL, CE , CCC Other Pressure Swettings and Differential are available on request. Conversion: 1Mpa =10.2 Kgf/cm2 , Kgf/cm2 = 14.2PSI , 1bar = 14.5PSI
