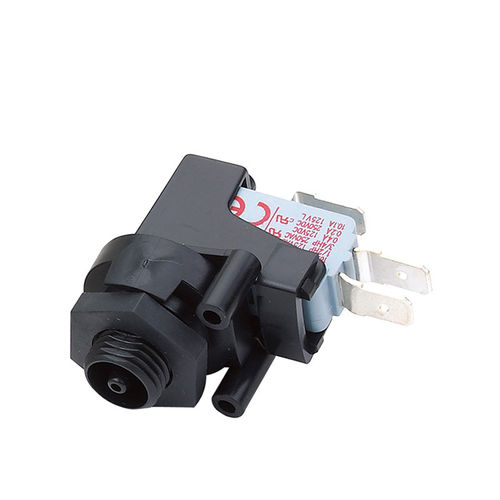

Mechanical pressure switch LF40-01

differentialSPDTfor water

LF40-01is provided with a snap action switching for higher current capacity, SPDT contact form and switch dead bands (also referred to as mechanical differential or hysteresis). LF40-01can be used together with air button (also called as Actuator) for remote control purpose. It is widely used in food waste disposer, pumps for swimming pools and spas, hot tubs, sanitary equipment, outdoor machines, medical equipment, etc. As a remote control switch, it is small enough to fix in the control box of the engine. Used as a remote control, the air switch has two actions: 1) Momentary action: when the air button is pushed, the air switch is actuated. When the air button is released, the air switch will also be released. This is the way the basic pressure switches are working. 2) Alternate action (also referred to as latching or bistable): the first pushing on air button actuates the air switch, and the air switch keep actuating when air button is released. A second push on the air button will release the air switch. Model - LF40-01 Medium - Air or other non hazardous gas, water Operating PressureRange - 20 mbar to 1000 mbar Proof Pressure - 50 PSI OperatingTemperature Range - -10° C to 85° C Contact Arrangement - SPST or SPDT Electric Rating - 1/2HP 250V, for long distance remote control; 2HP 250V, for high rating application; Other rating can be available on request Terminals - 6.35 or4.88 mmmale Q.C. Connection - 4mm OD tube,1/4 NPT male thread, 1/8 NPT male thread Aggency Approval - UL, CUL
