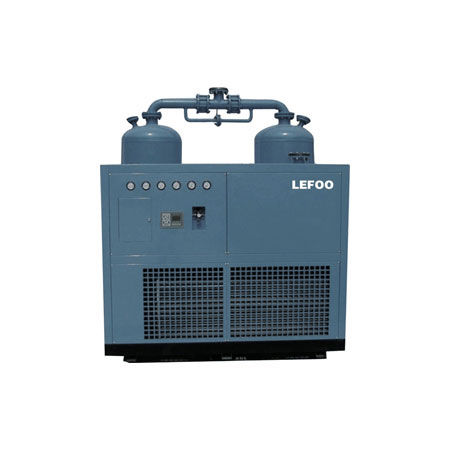

Refrigerated compressed air dryer LFZH seriesair-cooled
Add to favorites
Compare this product
Characteristics
- Technology
- refrigerated
- Other characteristics
- air-cooled
- Capacity
Max.: 110 m³/min
(3,884.61 ft³/min)Min.: 1.6 m³/min
(56.5 ft³/min)- Working pressure
Max.: 800,000 Pa
(116.03 psi)Min.: 600,000 Pa
(87.02 psi)
Description
Working conditions
Rated inlet temperature ≤45℃
Rated working pressure: 0.6~0.8MPa
Pressure dew point:≤-40℃（-70℃available）
Regeneration method: Heatless or Low heat regeneration
Regeneration air consumption ≤3%
Cooling method:Air-cooled or water-Cooled
Control method: Full electronic programmable time control
Power:AC\220V\50HZ or AC\380V\50HZ
Installation method: Even ground, no need foundation
