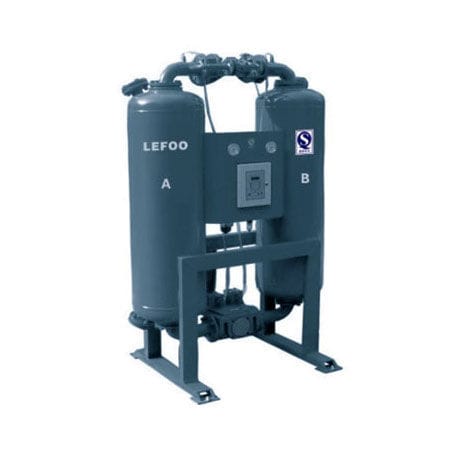

Desiccant dryer LFAD-xMXF seriescontinuousairvertical
Add to favorites
Compare this product
Characteristics
- Technology
- desiccant
- Batch/continuous
- continuous
- Applications
- air
- Other characteristics
- vertical
Description
working conditions
Rated inlet temperature≤45℃
Rated working pressure: 0.4-1.0MPa
Pressure drop: ≤0.021 MPa
Pressure dew point:-20℃～-40℃（-70℃available）
Regeneration method: Low heat regeneration
Regeneration air consumption≤6%
Adsorbent: Activated aluminum oxide(molecular sieve is optional)
Inlet oil content≤0.1ppm
Period: T=120min（adjustable）
Control method: Full electronic programmable time control
Power: AC\380V \50HZ
Installation method: Even ground, no need foundation, ambient temperature＞0℃
