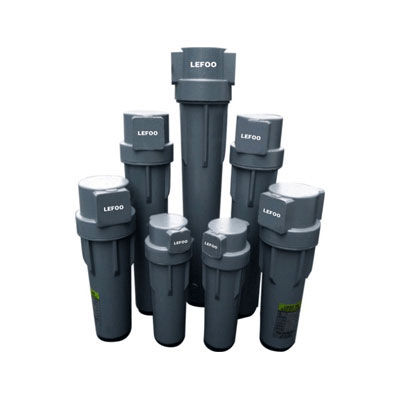

Air filter
single-basketpressureflange

air filter
air filter
Add to favorites
Compare this product


Characteristics

Designed for
for air
Filtration element
single-basket
Filtration method
pressure
Mounting
flange
Operating pressure

Max.: 4,000,000 Pa
(580.151 psi)

Min.: 100,000 Pa
(14.504 psi)

Flow

Max.: 310 m³/min
(10,947.547 ft³/min)

Min.: 1.6 m³/min
(56.503 ft³/min)

Description

Working Conditions Max pressure: ≤1.0MPa(possible to order pressure below 4.0MPa) Fluid temperature: Q、P、S grade: 66℃; C grade:50℃ Initial pressure drop: 0.01MPa Max pressure drop: 0.07MPa Working life: Q、P、S grade up to 8000hs;C grade up to 1000hs Connection: taper pipe female, flange
