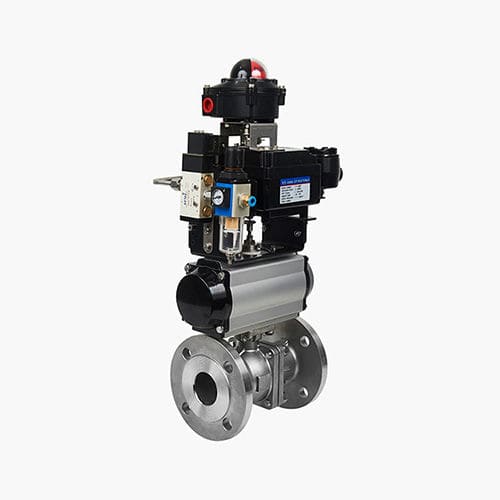

Ball valve

pneumaticregulatingflange

The structure of the ball valve: it is composed of one valve body and two valve covers combined with ball core. The ball core is connected by the valve rod, and the axis can be rotated 90 degrees to realize the function of opening and closing. It is mainly used for pipeline switch, emergency cut-off, and ball core V-shaped opening can also be designed to achieve flow regulation function. Design standards: GB/T12237;DIN3357;EN12516-1;ASME B16.34;API608 Wall thickness standard: ANSI B16.34,EN12516-1 Flange end standard: GB/T9113;HG20592;DIN1092;ASME B16.5;JIS B2238 Testing standard: GB/T 26480;DIN3230;API 598;EN 12266 Body Material Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel.etc. NACE MR-01-75/NACE MR-01-03 Special Requirements Face To Face ANSIB16.10;DIN3202 F1,F4/F5;GB/T12221;JISB2002 Flanged RF, FF, RTJ Ends ASME B16.5 CLASS 150/300;EN1092-1;HG20592 GB/T9113 PN10-PN40;JIS B2238 10K/20K Butt-Weld BW Ends ASME B16.25,ISO1127/EN12627 Socket-Weld SW Ends ANSI B1.20.1;BS21;DIN2999/259;ISO228/1;ISO7/1;JIS B0203 Other Design Anti-static design,automatic pressure relief design, emergency grease injection design, drain valve, anti-corrosion design, anti-sulfur design,etc Visual Inspection MSS SP-25 Material Inspection PMI Test---Chemical Analysis UT---Ultrasonic Test RT---Radio-graphic Test MT---Magnetic Test NDT Test Non-destructive Dimension Inspection According to drawings Valve Inspection And Test EN12266,API598,ETC
