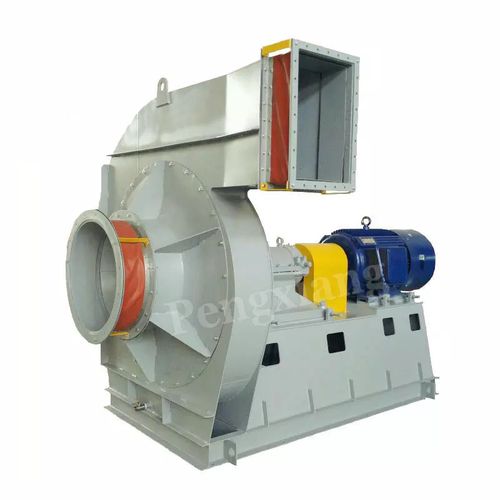

Floor-standing fan 9-28-10D series

centrifugalsuctionventilation

9-28-10D series Centrifugal fan Product Description Purpose: high pressure ventilation,such as forging furnace smelting,cement cooler clinker. The impeller diameter: 400~1600 mm Air volume range: 800~120000 m3/h Pressure range: 15000 pa Working temperature: temperature: - 20°C~80°C Driving mode: A, C, D Impeller The parts are made of standard mould. Class B vvclding standards. The results of the weld surface of the product mcet the requirements of NB/T47013.5-2015 standard CLASS 1 Motor Free choice of motor brands, manufacturer provide or customers provide with two-way choice Bearing Box Bearing box adopts the I larvard lypc splil structure, convenient maintenance Flexible Connection High temperature and high quality soft connection, easy to install and disassemble Drain valve Drain valve is made of stainless Steel, long service life ※ With single suction,impeller with forward curved blades. ※ No4~6.3 fan is A transmission;Fan No7~16fan is C and D type transmission. ※ Fan inlet made constrictive streamlined structure. ※ Transmission part group consists of main shaft,bearing box,rolling bearing,pulley or coupling,etc. ※ Inlet and outlet flexible joints dampers.
