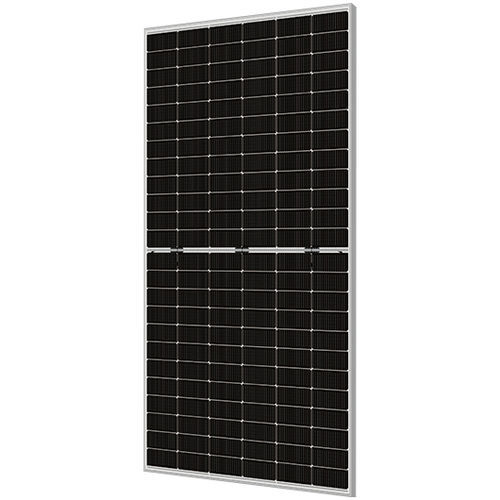

Monocrystalline silicon PV module DAS-DH144NA
BIPVTUVIEC

Add to favorites

Compare this product

Characteristics

Technology: monocrystalline silicon, BIPV
Certifications: TUV, IEC, CE, ISO
Other characteristics: high-efficiency
Peak power (Wp): 560 W, 565 W, 570 W, 575 W, 580 W
Open-circuit voltage: 51.3 V, 51.4 V, 51.6 V, 51.8 V, 52 V
Short circuit current: 13.8 A, 14.3 A, 14.4 A
Max power voltage: 42.3 V, 42.5 V, 42.7 V, 43 V
Max power current: 13.1 A, 13.5 A, 13.6 A
Module efficiency: 21.7 %, 21.9 %, 22.1 %, 22.3 %, 22.5 %
Lenght: 2,278 mm
(90 in)
Width: 1,134 mm
(45 in)
Height: 30 mm
(1 in)
Weight: 32.7 kg
(72.09 lb)

Description

Conversion efficiency Our industry-leading module power contributes to a conversion efficiency of 22.6%. Double sided power generation Bifacial ratio reach 80%，30% more module power generation than conventional modules. Excellent product appearance and performance Two-sided double-glazed modules, symmetrical structural design, low risk of hidden cracks. Better low irradiance performance Higher power output even under low irradiance environments like on cloudy or foggy days High reliability 3-fold IEC new standard tests passed, 15-year material warranty, and 30-year power warranty. Extensive application Scenes Preferred modules for surface and industrial and commercial power plants.
