AC voltage regulator TS-V series

digital

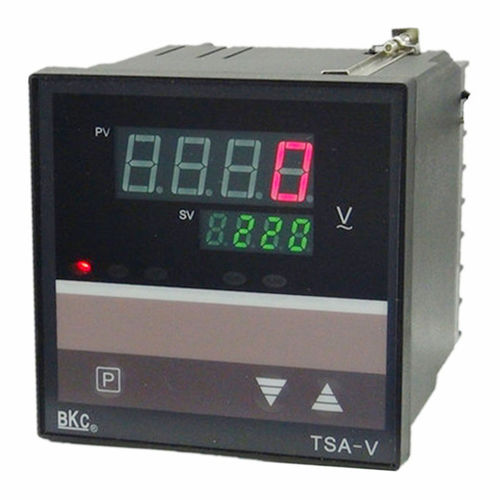

Specification Intelligent voltage regulator with digits independent PV and SV displays.easy to read , and good quallity Intelligent voltage regulator TSG-V is of 2 rows 3 digits independent PV and SV displays. TSG-2V voltage regulator is of 4 rows 3 digits independent PV and SV displays. When used together with SCR, voltage regulator can regulate the voltage across the load. High quality and high accuracy voltage regulator Technical data: 1. Output impulse: Breadth value ≥ 3v, width ≥ 50us; S (when the load resistance is 20ohm) 2. Voltage setting range: 0-200v(or the voltage range you want) 3. Working environment: Temperature 0-50 degrees celsius, relative humidity does not exceed 85%,non-corrosive environment. 4. Power supply: AC 220v+/-15%, 50Hz+/-1Hz; About 3va 5. Size:TSG-V 48x48x88mm TSA-V96*96*100mm TSD-V72*72*100mm TSG-2V 48*48*88(two voltage regulator in one unit) 6. Voltage setting range: 0-200v(or the voltage range you want)
