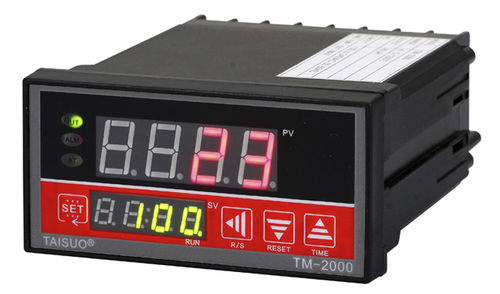

Independent process and set point displays
PID control with auto tuning.
Power supply 100-240VAC 50-60Hz 4VA
1) Dural process point and set point display
2) PID control with auto tunning
3) Main control output: Relay/ SSR/ SCR
4) Selectable heating/cooling control
5)Timer and temperature controller in one unit
6) Two models to activate timer function:
A) timer activated at power on
B) timer activated when process value arrives at set point
7) Environment
0~50°C ambiebt temperature
30~85% non-condensing humidity
8) Power supply
100~240VAC 50-60Hz 4VA
9) Dimension:
48mm*96mm*110mm
