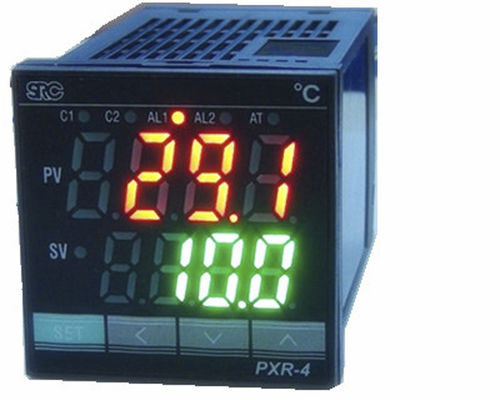

Digital temperature controller CE, max. 96x96x110 mm, 21 - 240 V | PXR series

PIDuniversal

universal-inout, PID process, can be connected with computer by RS232/485 converter. Universal-input PID process temperature controller 1) Universal input 2) Dual 4 digits display with 7segments LED 3) dual output 4) RS485 interface Temperature controller demension: PXR4: 48 x 48 x 110mm, PXR5: 48 x 96 x 110mm, PXR9: 96 x 48 x 110mm Main Features 1) Universal input: a) Thermocouple: K, J, R, S, B, E, N, T b) RTD: Pt100, Pt1000, Cu50 c) Linear signals: 0-20mA, 4-20mA, 0-5V, 1-5V 2) Control Output: relay output, SSR logic output, mA/V output 3 Two configurable relay alarms,contact capacity 5A@250V AC 4) Heating/ cooling control selectable 5) PID control;ON/OFF control
