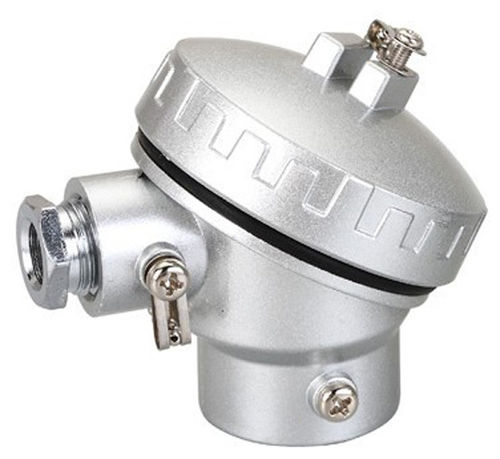

Thermocouple connection head IP67-IEC | KSERTDfor temperature sensorsdust-proof
Add to favorites
Compare this product
Characteristics
- Options
- thermocouple, RTD, for temperature sensors
- Protection level
- dust-proof, waterproof
Description
Temperature sensor connection head,material ;AluminiumADC12,lacquer painting or ployester powder coating, Cover diameter 58mm
Sensor connection head is widely used in the thermocouple and RTD sensors.It has the transmitter and terminal block within.Usually ,the material is AluminiumADC12 casted.Its anti-dust and water-proof.Bakelite and stainless is also avaiable for anti-erosion.
1) Type: KNE
2) Material: Aluminium alloy
3)painting: lacquer painting or ployester powder coating
4)Colour: Silver ,RAl colour code
Thermocouple Head
1) Cover diameter 58mm
2) Ceramic terminal blocks:
mounting holes distance: 33±0.1mm, 40±0.1mm
3) wire entry: M16*1,NPT3/8,G3/8
4) probe entry: M12×1, M16 ×1 , NPT1/2 , G1/2,
