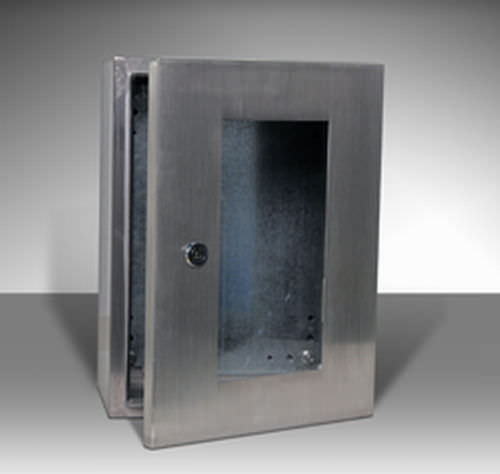

Wall-mount enclosure ROHS, CE, IP66, TUV, IK 10, AISI 304L / AISI 316L | STXP

rectangularstainless steel

Characteristics Structure -Rails are made up of unique closed profile manufactured from 15/10 AISI 304L stainless steel. -The frame corners are manufactured with orthogonal joints in AISI 304L stainless steel,laser welded to the rails. -Only 8 high resistance screws in stainless steel are necessary to mount the structure,while two position pins allow the easy mounting of the two parts of the joint. -Doors manufactured from 20/10 AISI 304L (AISI316L on request) satin stainless steel with stiffening frame and plexiglas viewing window. -Hinges are made in zinc alloy, chrome plated (hinges manufactured from AISI 316L stainless steel on request). -Real panel manufactured from 15/10 AISI 304L (AISI 316L on request) satin stainless steel. -Roof manufactured from 15/10 AISI 304L (AISI 316L on request) satin stainless steel. -Bottom manufactured from 15/10 AISI 304L (AISI 316L on request) satin stainless steel. Delivery -Structure -door with plexiglas complete with 3mm double bar locking system -hinges in zinc alloy, chrome plated -real panel -removable roof -bottom with removable cable entry. Protection ratings -IP 54 complying with IEC EN62208;En60529 -NEMA 12 complying with UL508A;UI50 -impact resistance IK10 Complying with IEC EN62208;EN50120
