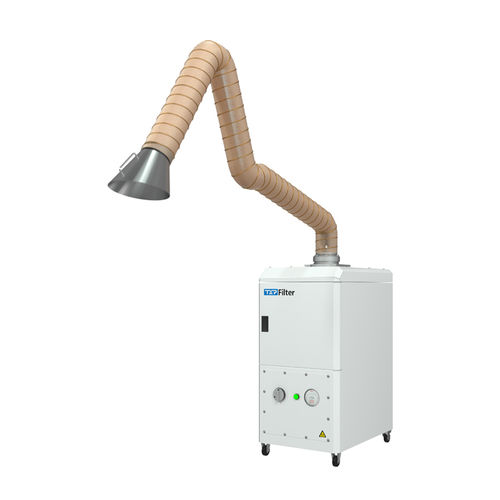

Cartridge industrial dust collector TDC1-MEX SERIES

reverse air cleaningfor the food industryfor the pharmaceutical industry

TDCI-M mobile dust collector is specially designed for gas hazardous area ZONE 1 ZONE 2 and dust hazardous area ZONE 21 ZONE 22, can be used for variety of explosive dust collection and filtration. The whole machine is explosion-proof structure designed, integrated structure, Plug-and-Play, convenient and fast installation. With certified explosion proof blower Explosio proof certified blower Equipped With antistatic nano fiber flame retardant filter cartridge, whole machine is antistatic bonded With grounding pole, grounding clamp is optional, to ensure that the grounding resistance of the whole machine is less than ICQ. Explosion proof control switch and Other EX rated parts are adopted Equipped With a mechanical magnehelic gauge, which can be used to determine whether it is necessary to reverse purge or replace the filter cartridge according to the pointer area of the magnehelic gauge. Stailess steel housing is optional. Manual button compressed air pulse cleaning mode, pulse cleaning system electrical components are explosion-proof types The clamping slot of the end cover is placed inside the protective door to avoid leakage if caused by the deformation of the end cover placed on the ground.
