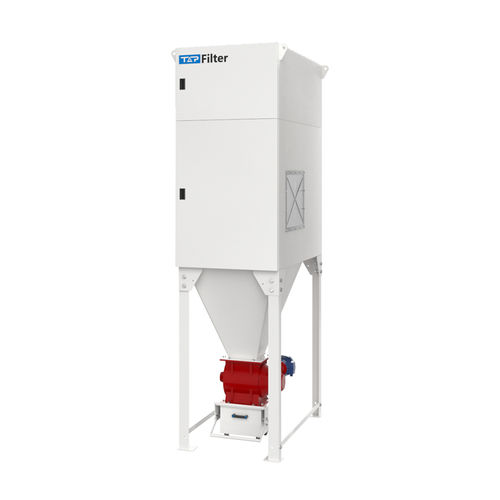

Cartridge industrial dust collector TDC4-16 SERIES

reverse air cleaningfor the food industryfor the pharmaceutical industry

TDC series cartridge dust collector is specially designed for multiples of explosive dust hazardous areas, can be used for variety of explosive dust collection and filtration. Overhead explosion-proof blower module, integrated structure, convenient and fast installation. Equipped with antistatic filter cartridge, whole machine is bonded with grounding advice, to ensure whole machine reliable grounding and safety. Explosion-proof electric control box integrated multi-function control system, including blower control and protection, automatic pulse cleaning control, magnehelic or regular cleaning can be optional. Dust bin is specially designed with a large inclination Angle of 65°. At the same time, the valve is used between the hopper and dust bin for continuous dust discharge, which meets the relevant requirements of the national dust explosion-proof. According to the installation site, can be equipped with explosion venting plate or flame-free explosion venting device, the required venting space according to the dust characteristics professional calculation, explosion venting plate or flame-free explosion venting device all are international famous brands. All explosion-proof parts have third-party certification.
