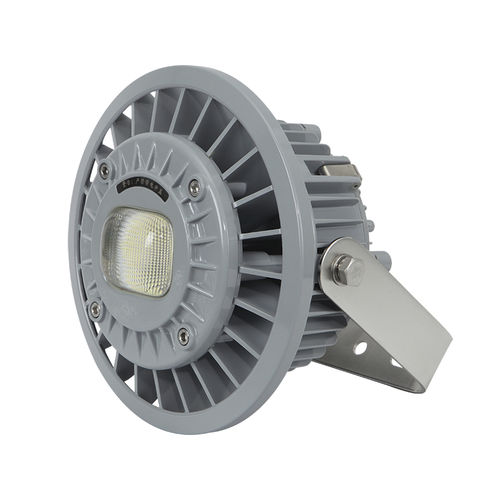

Lamp BC9308S seriesLEDIP66explosion-proof
Add to favorites
Compare this product
Characteristics
- Type
- lamp
- Illumination technology
- LED
- Protection level
- IP66
- Other characteristics
- explosion-proof, for hazardous locations
- Power
Min.: 30 W
Max.: 80 W
Description
Protection class: - Zone 1, Zone2; Zone 21, Zone 22
CCT - 5000K(3000K/4000K optional)
Gas explosive environment:
Group IIA, IIB, IIC
Power factor: - >0.98
Life time: - >50,000 hours
Ambient temperature: - From -50℃ to 55℃
CRI(Ra) - 70 / 80
Dimension: - 180x230x270mm
CONSTRUCTION: - Lens: - Tempered glass
Shell Material: - Aluminum alloy with anti-corrosion surface treatment
Exposed fasteners: - 304 Stainless Steel
ELECTRICAL UNIT: - Voltage: - 90~264VAC(30~60W) or 185~264VAC (80W)18~43VAC/ 18~55VDC (30~60W)
Rated frequency - 50Hz / 60Hz
Cable entry: - M20×1.5, M25×1.5, G3/4", NPT1/2", NPT3/4"
MOUNTING: - Seat mounting / Ceiling mounting / Sidewall mounting / Pole mounting
