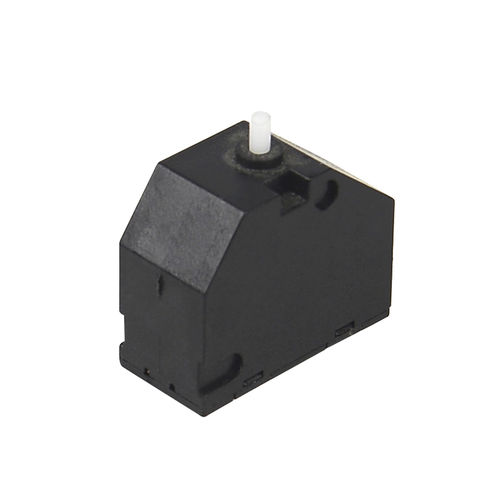

Magnetic electromechanical relay DCAC
Add to favorites
Compare this product
Characteristics
- Control voltage
- DC, AC
- Other characteristics
- magnetic
Description
Both electronic type and electromagnetic type relay available upon request;
Min tripping power:100uVA;
Magnetizing power:≥5000uVA;
Resetting force: 1.2N-1.6N;
Impedance when tripping power adjusted into 100uVA: 160 turns: 2.8-4.4Ω; 500 turns: 35-45Ω;
Plunger path distance:1.8mm;
Characteristics of path force: path distance:0.5mm: F≥0.8N; path distance:1.0mm: F≥0.5N; path distance:1.5mm: F≥0.25N;
Tripping time:25ms when incentive value bigger than 20% of adjusted tripping power;
Life:5000 times;
Weight:8g.
Customized relays available upon request.
