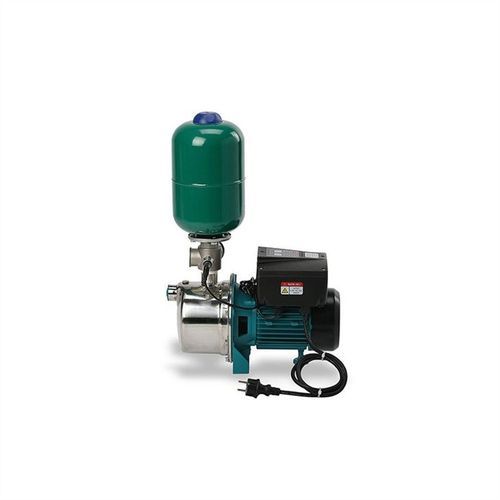

Impeller pump VFWJ-15S serieswaterelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- electric
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- treatment, outlet, loading
- Voltage
- 220 V
- Other characteristics
- combined
- Flow
3 m³/h, 4 m³/h
(105.944 ft³/h, 141.25867 ft³/h)- Pressure
10 bar, 16 bar, 25 bar
(145.038 psi, 232.06 psi, 362.594 psi)- Head
38 m, 44 m, 46 m
(124'08" , 144'04" , 150'11" )- Power
0.37 kW, 0.75 kW
(0.5 hp, 1.02 hp)- Fluid temperature
Max.: 100 °C
(212 °F)Min.: 0 °C
(32 °F)
Description
The frequency drive water pump can be used in the fields of domestic water supply, industrial constant pressure water supply, water treatment.
Application
The frequency drive water pump can be used in the fields of domestic water supply, industrial constant pressure water supply, water treatment.
Features of Products
❖The frequency drive water pump adopts the latest SPWM AC Frequency conversion
speed régulation technology combined with pressure sensing technology, through the
feedback of on-time pressure value compared with the setting pressure, it can automatically
adjust the motor speed. and keep the outlet pressure constant.
❖Energy-efficient .Compared with the traditional way of water supply system, our variable
frequency water pump can save energy up to 20%-60%..
❖With power protection, dry-running protection, over-loading protection and over-heat
protection.
❖Compact, Reliable and easy installation, make water usage comfortable and enjoyable.
❖Soft-start and soft-stop, no water hammer.
❖This converter system protects the water pump and make the pump's life longer.
❖Easy installation and opération, it adapts to various kinds of pumps, greatly save the cost.
❖Easy opération and setting: just press the key to set the required pressure easy and
