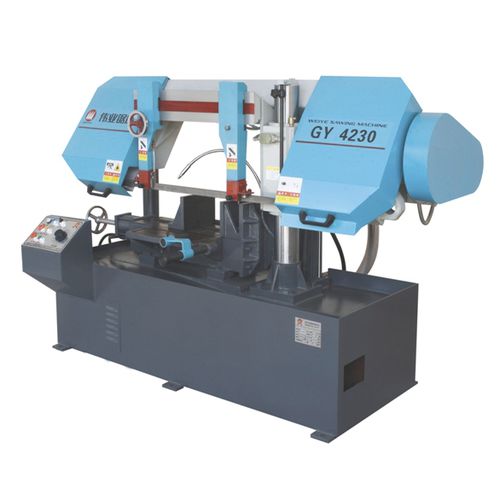

Band saw GY4230horizontalfor pipesemi-automatic
Add to favorites
Compare this product
Characteristics
- Technology
- band
- Orientation
- horizontal
- Applications
- for pipe
- Operational mode
- semi-automatic
- Other characteristics
- with cooling system, with roller conveyor, variable-speed, with hydraulic vise, high-performance, CE, double-column
- Round piece diameter
Max.: 300 mm
(12 in)Min.: 0 mm
(0 in)
Description
Capacity(mm)
●300
■300×500
Blade Speed(m/min)
22.48.70
Blade Size(mm)
34×1.1
Main Motor
3KW
Hydraulic Motor
0.75KW
Coolant Motor
90W
Table Height
610mm
Workpiece Clamping
Hydraulically
Blade Tensioning
Manually
Floor Space(LxWxH)(mm)
2060×1200×1350mm
Features
suits cutting variety small sized material
Adopts oversized round columns for maximum amount of support to the saw frame. The rigid dual columns with large diameter guide the saw frame for a more powerful, smooth and accurate cutting. Cutting force and feed rate are applied evenly from top to bottom of the cut.
Carbide guides for the blade
wire brush for the chip removal
Variable speed controlled by the belt pulley
Option
roller conveyor
top vice
hydraulic band tensioner
