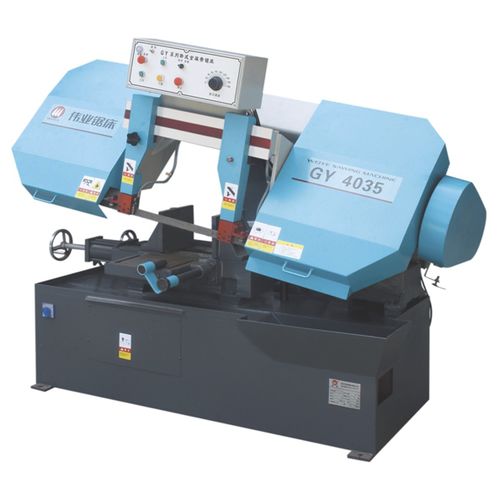

Band saw GY4035horizontalfor pipesemi-automatic
Add to favorites
Compare this product
Characteristics
- Technology
- band
- Orientation
- horizontal
- Applications
- for pipe
- Operational mode
- semi-automatic
- Other characteristics
- with cooling system, with hydraulic vise, with roller conveyor, variable-speed, CE
- Round piece diameter
Max.: 350 mm
(14 in)Min.: 0 mm
(0 in)
Description
Capacity(mm) ●350 ■280×400
Blade Speed(m/min) 30、55、85
Blade Size(mm) 4115×34×1.1
Main Motor 3KW
Hydraulic Motor 0.42KW
Coolant Motor 40W
Table Height 610mm
Workpiece Clamping Hydraulically
Blade Tension Manually
Floor Space(LxWxH)(mm) 2150×1150×1400
Feature
Pivot type down feed system
Adopts worm gear reducer, stable performance
Adopts carbide guides, long service life of blade, narrow saw kerf
Hydraulic workpiece clamping with precision and stability
hydraulic cutting speed adjustment, variable speed adjusted by the belt pulley, optional inverter.
The blade speed provided with 3-step speed, changed by the changing location of the V belt in the belt pulley.
Auto stop of the oil pump when the blade running, energy saving
Option
roller conveyor
top vice
hydraulic band tensioner
