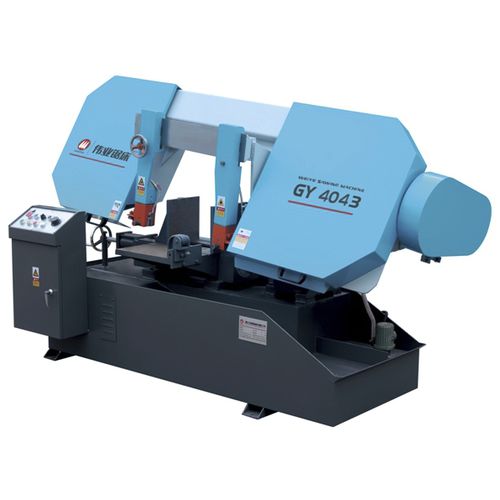

Band saw GY4043horizontalfor metalssemi-automatic
Add to favorites
Compare this product
Characteristics
- Technology
- band
- Orientation
- horizontal
- Treated material
- for metals
- Operational mode
- semi-automatic
- Other characteristics
- with cooling system, variable-speed, CE, with hydraulic vise, with roller conveyor
- Round piece diameter
Max.: 430 mm
(17 in)Min.: 20 mm
(1 in)
Description
Capacity(mm) ●430
■430×350
Blade Speed(m/min) 20, 30, 45, 70
Blade Size(mm) 4888×41×1.3
Main Motor 4KW
Hydraulic Motor 1KW
Coolant Motor 0.09KW
Table Height 660mm
Workpiece Clamping Hydraulically
Blade Tensioning Manually
Floor Space(LxWxH)(mm) 2500×1000×1600
Feature
Pivot type down feed system
Adopts worm gear reducer, stable performance
Adopts carbide guides, long service life of blade, narrow saw kerf
Hydraulic workpiece clamping with precision and stability
hydraulic cutting speed adjustment, variable speed adjusted by the belt pulley, optional inverter.
The blade speed provided with 4-step speed, changed by the changing location of the V belt in the belt pulley.
Auto stop of the oil pump when the blade running, energy saving
Option
roller conveyor
top vice
hydraulic band tensioner
