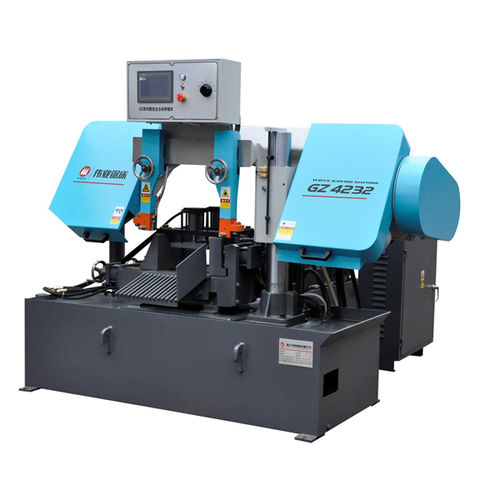

Band saw GZ4232horizontalfor pipefully-automatic
Add to favorites
Compare this product
Characteristics
- Technology
- band
- Orientation
- horizontal
- Applications
- for pipe
- Operational mode
- fully-automatic
- Other characteristics
- with cooling system, with roller conveyor, variable-speed, with hydraulic vise, programmable, high-performance, CE, double-column, PLC-controlled
- Round piece diameter
Max.: 320 mm
(13 in)Min.: 0 mm
(0 in)
Description
Capacity(mm) Round 320 Rect. 320×320
Blade Speed(m/min) 22,48,70
Blade Size(mm) 34 × 1.1
Main Motor 4KW
Floor Space(LxWxH)(mm) 2300×2000×1800 mm
Features
Adopts PLC unit, touch screen
Hydraulic feeding and cutting cycle achieved
variable speed by the belt pulley and speed control valve
Auto-feeding, auto-positioning,auto-cutting
Error alarm system for maintenance
band check device
Operation panel mounted to the saw frame, electric cabinet from the rear
Option
inverter
hydraulic blade tensioner
Chip auger
conveyor
