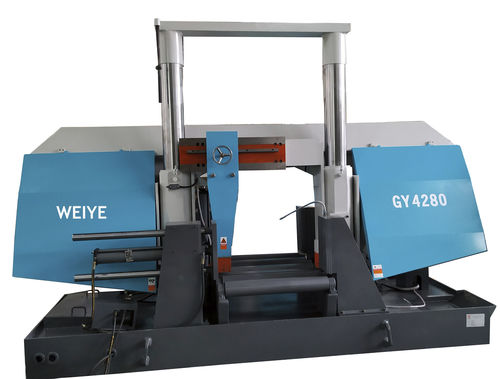

Band saw GY4280horizontalfor metalsfor pipe
Add to favorites
Compare this product
Characteristics
- Technology
- band
- Orientation
- horizontal
- Treated material
- for metals
- Applications
- for pipe
- Operational mode
- semi-automatic
- Other characteristics
- with cooling system, heavy-duty, variable-speed, with hydraulic vise, shuttle table, high-performance, CE, with roller conveyor, gantry type, double-column, large format
- Round piece diameter
Min.: 0 mm
(0 in)Max.: 800 mm
(31 in)
Description
Model GY4280
Capacity(mm) ●800 ■800×800
Blade Speed(m/min 20～80 inverter
Blade Size(mm) 67×1.6
Main Motor 7.5KW
Hydraulic Motor 3KW
Coolant Motor 120W
Table Height 630mm
Floor Space(LxWxH) 4000×3200×2750mm
mainly used for cutting various kinds of ferrous metal and non-ferrous metal.
Features
Adopts two oversized round columns for maximum amount of support to the saw frame. The cross link on top adds to great structural strength.The rigid dual columns with large diameter guide the saw frame for a more powerful, smooth and accurate cutting. Cutting force and feed rate are applied evenly from top to bottom of the cut.
Guide block system adopted to lengthen the service life of blade
Power roller table feeding
Variable speed controlled by inverter
Chip auger
Catalogs
WEIYE_BAND_SAW_V.2019
17 Pages
Other Zhejiang Weiye Sawing Machine Co., Ltd products

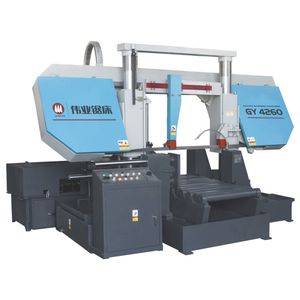

horizontal Gantry band saw
