3-axis CNC milling machine XK7132SD
verticalBT 40

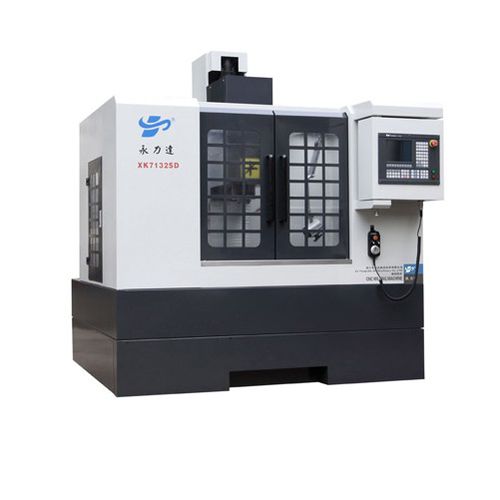

3-axis CNC milling machine - XK7132SD - Zhejiang Yonglida Cnc Technology Co.,ltd. - vertical / BT 40

Add to favorites

Compare this product

Characteristics

Number of axes

3-axis

Spindle orientation

vertical

Spindle mount

BT 40

X travel

500 mm
(19.69 in)

Y travel

300 mm
(11.81 in)

Z travel

360 mm
(14.17 in)

Rotational speed

Min.: 100 rpm
(628 rad.min-1)

Max.: 6,000 rpm
(37,699 rad.min-1)

Power

3 kW
(4.08 hp)

Weight

2,200 kg
(4,850.17 lb)

Overall length

2,200 mm
(86.6 in)

Overall width

2,000 mm
(78.7 in)

Overall height

2,400 mm
(94.5 in)

Description

Table size (length * width) 850*320mm2 Distance from spindle center to column guideway 300mm Distance from spindle from working table 510mm X, Y axis motor torque 6NM The Z axis motor torque 6NM Feed motor AC servo motor Tool change Pneumatic knife Minimum setting unit 0.001mm
