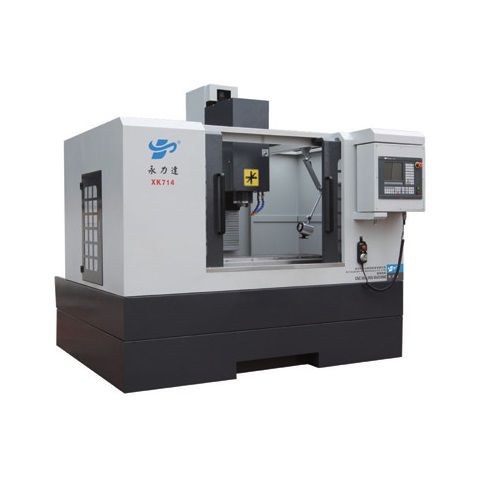

3-axis CNC milling machine XK714verticalBT 40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- X travel
750 mm
(29.53 in)- Y travel
450 mm
(17.72 in)- Z travel
500 mm
(19.69 in)- Rotational speed
Max.: 8,000 rpm
(50,265 rad.min-1)Min.: 100 rpm
(628 rad.min-1)- Power
7.5 kW
(10.2 hp)- Positioning accuracy
0.01 mm
(0.00039 in)- Weight
5,000 kg
(11,023.11 lb)- Overall length
2,600 mm
(102.4 in)- Overall width
2,200 mm
(86.6 in)- Overall height
2,700 mm
(106.3 in)
Description
Table size (length * width)
1000*500mm
Distance from spindle center to column guideway
500mm
Distance from spindle from working table
100-650mm
X, Y axis motor torque
15NM
The Z axis motor torque
15NM
Repeat positioning accuracy
+ 0.008mm
Feed motor
AC servo motor
Tool change
Pneumatic knife
Other Zhejiang Yonglida Cnc Technology Co.,ltd. products

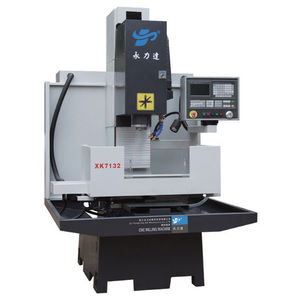

CNC milling machine
