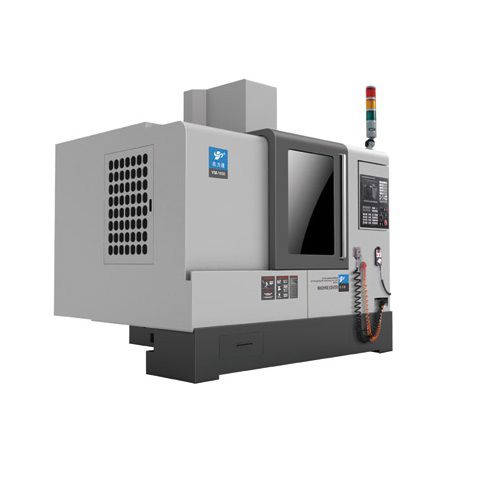

3-axis CNC milling machine XK715verticalBT 40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- X travel
800 mm
(31.5 in)- Y travel
500 mm
(19.69 in)- Z travel
550 mm
(21.65 in)- Rotational speed
Max.: 8,000 rpm
(50,265 rad.min-1)Min.: 100 rpm
(628 rad.min-1)- Power
7.5 kW
(10.2 hp)- Positioning accuracy
0.008 mm
(0.00031 in)- Weight
5,000 kg
(11,023.11 lb)- Overall length
2,700 mm
(106.3 in)- Overall width
2,100 mm
(82.7 in)- Overall height
2,800 mm
(110.2 in)
Description
Table size (length * width)
1000*460mm2
Distance from spindle center to column guideway
500mm
Distance from spindle from working table
510mm
X, Y axis motor torque
15NM
The Z axis motor torque
15NM
Feed motor
AC servo motor
Repeat positioning accuracy
+ 0.005mm
Tool change
Pneumatic knife
