Centrifugal pump
for chemicalsdiesel enginestationary

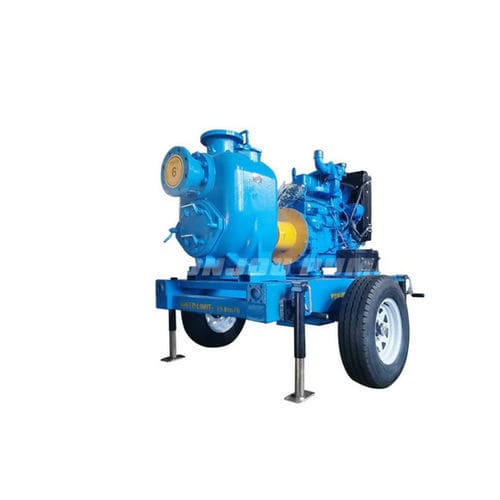

Centrifugal pump - Zhejiang Yonjou Technology Co., Ltd. - for chemicals / diesel engine / stationary
Centrifugal pump - Zhejiang Yonjou Technology Co., Ltd. - for chemicals / diesel engine / stationary
Centrifugal pump - Zhejiang Yonjou Technology Co., Ltd. - for chemicals / diesel engine / stationary - image - 2
Centrifugal pump - Zhejiang Yonjou Technology Co., Ltd. - for chemicals / diesel engine / stationary - image - 3
Add to favorites
Compare this product


Characteristics

Technology
centrifugal
Fluid
for chemicals
Operation
diesel engine
Mobility
stationary, mobile
Domain
industrial, for the chemical industry, for the pharmaceutical industry, for the textile industry
Applications
discharge, service, sewage, treatment
Other characteristics
suction, standard, small, large, open, line, dry
Flow

Min.: 100 m³/h
(3,531.46667 ft³/h)

Max.: 280 m³/h
(9,888.10668 ft³/h)

Power

Min.: 3 kW
(4.08 hp)

Max.: 37 kW
(50.31 hp)

Fluid temperature

80 °C
(176 °F)

Description

The 6inch trash pump centrifugal ST Series is the standard for industrial and sewage applications. The heavy duty construction and easy-to-service design have made this pump the standard in the industry. Summary The 6inch trash pump centrifugal ST Series is the standard for industrial and sewage applications. The heavy duty construction and easy-to-service design have made this pump the standard in the industry. The combination of different sized pumps, impeller trims and speed variations ensure that the correct capacity pump will be matched to the exact requirements of your system, whether it's a small sub-division or a large waste collection system. 6inch diesel engine trash pump with trailer feature a large volute design that allows them to re-prime automatically in a completely open system without the need for suction or discharge check valves - and they can do it with the pump casing only partially filled with liquid and a completely dry suction line. Working Conditions 1. The temperature of medium no more than 80°C, the density of medium is 1.0~1.3*103Kg/m3, PH is within5~9 2. Max diameter of solid should be less than 76mm 3. Max suction lifts no more than 7.6m 4. Volume ratio of solids in the medium ≤30% 5. Max. working pressure and suction head please reference performance curve and table Application 1. Municipal Project, Sewage Project, Instruction Project; 2. Transportation of the sewage of uptown; 3. Sewage transportation in Hospital, hotel,slaughter house,fish breeding; 4. Classification of municipal sewage treatment factory and concentrate treatment systems engineering; 5. Transportation of the factory and contaminated water;
