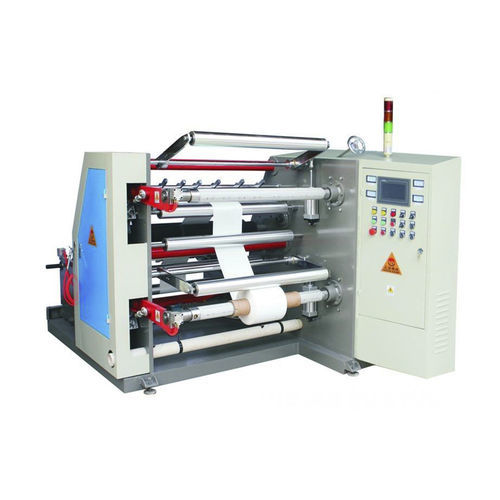

Knife cutting machine ZFQ-C
for PVCfor polyethylenefor paper

knife cutting machine
knife cutting machine
Add to favorites
Compare this product


Characteristics

Technology
knife
Material
for PVC, for polyethylene, for paper
Product handled
sheet
Control type
CNC
Associated function
unwinding, winding
Other characteristics
high-speed, heavy-duty
Cutting speed

3.3 m/s
(10.827 ft/s)

Overall length

2,050 mm, 2,250 mm, 2,750 mm
(81 in, 89 in, 108 in)

Overall width

2,500 mm
(98 in)

Description

This Machine Is Suitable For Slitting Of Single-Layer Plastic Film Such As PET/OPP/CPP/PE/PS/PVC, Multi-Layer Plastic Composite Film, Paper And Other Rolls.   1. Adopt PLC Programmable Control System, The Winding And Unwinding Tension Is Fully Controlled By PLC.   2, Touch Screen Man-Machine Interface, Working Status, Speed, Tension And Other Parameters Are Displayed And Controlled Centrally.   3, Using A One-Button Start / Stop Design, Tension Switch, Host Start And Stop, Etc. To Achieve Linkage Control, Before Starting The Machine, Only Need To Input A Few Simple Parameters Such As Thickness, Diameter And Speed Of The Raw Materials, The Next Work Is All Automatically By The Computer Completion Of The PLC Can Realize The Function Of Winding The Meter, Stopping The Meter And Stopping The Automatic Shutdown.   4. The Main Motor Adopts Frequency Conversion Speed Regulation.   5, Vertical And Horizontal Structure, Receiving And Discharging On The Front And Rear Sides.   6. The Air-Expansion Shaft Is Unwound, The Reel Can Be Disassembled, With Automatic Feeding Function, And The Automatic Photoelectric Correction System Is Installed At The Unwinding Position.   8. The Upper And Lower Double Winding Structures Are All Equipped With An Air Expansion Shaft And Equipped With A Pressure Roller. The Reel Can Be Fixed On One Side And Is Easy To Unload. The Heavy-Duty Shaft Structure Is Durable. The Other End Of The Reel Has A Pneumatic Rise And Fall Pneumatic Self-Locking.   9. The Winding Is Driven By Magnetic Powder Clutch.   10. The Waste Side Guides The Tube Fan And Blows The Waste Edge From The Right Side Of The Machine.
