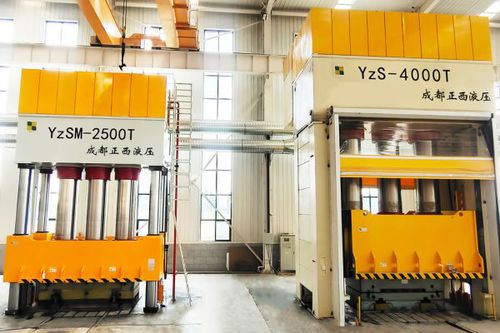

Hydraulic press YzS-4000T

RTM formingstampingfor molding

Resin transfer molding (RTM) refers to a composite material molding process in which resin is injected into a preform and solidified together to form an overall structure. This process is increasingly used in low-cost molding technology for advanced composite materials. RTM presses are specially designed for the RTM process. Our RTM forming press has the advantages of low cost, short cycle time, large batches, and high-quality production (good part surface). It is used in many industries such as automobile manufacturing, shipbuilding, aircraft manufacturing, agricultural machinery, railway transportation, wind power generation, and sporting goods. Requirements for presses in the RTM process: Tonnage to ensure clamping force. Ensure the overall rigidity of the fuselage. Automated integrated control of injection machines, mold temperature controllers, etc. Features Fast movement speed, short pressure building time, and active slider balance control. High-quality parts with very thin walls can be produced. The speed profile in the stamping process is controllable. Greater flexibility in component production. Press configuration features optimized deflection for uniform wall thickness The roller guide of the slide has a closing function to ensure free movement of the slide during the stamping process. Independent cylinder. Used for double slider balance control and smooth opening of the mold to avoid damage to parts. The accumulator drive enables efficient energy utilization and shortens pressure build-up time. Advantages The fuselage is welded with Q355B high-quality carbon steel material, which has higher strength.
