Manual press YzS

hydraulictrimmingforming

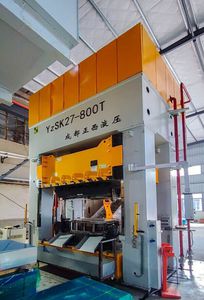

The forging trimming press is mainly used for the metal hot-cut edge-cutting process. Perform flash-cutting processing on the hot blank forged by die forging. Also known as die forging trimming press. According to the different forgings, the commonly used tonnages are 400 tons, 500 tons, 800 tons, 1000 tons, 2000 tons, etc. The machine structure is divided into two types: four-column type and frame type. It consists of a main frame, main working cylinder, return cylinder, ejection cylinder, hydraulic system, control system, safety protection device, and other parts. Features The die-forging trimming press uses hydraulic transmission to generate power, squeeze the workpiece, and complete stamping, trimming, bending, stretching, and other tasks according to regulations. Centralized control using buttons. Process actions adopt relay control and other methods. Enables operating modes such as adjustments, manual and semi-automatic operations, and limited processing of workpieces. During the operation of the trimming press machine of forged parts, its working pressure, pressing speed, no-load rapid descent, and deceleration stroke range can be adjusted according to process needs, and it can complete constant pressure edge trimming and fixed stroke forming. These process methods have pressure maintaining, delay, and automatic return actions after pressing. Structure of Forging Trimming Press For Sale The main part of the trimming presses for hot forging includes hydraulic cylinders, beams, columns, and liquid filling devices. The power mechanism consists of high-pressure pumps, fuel tanks, electric motors, control systems,
