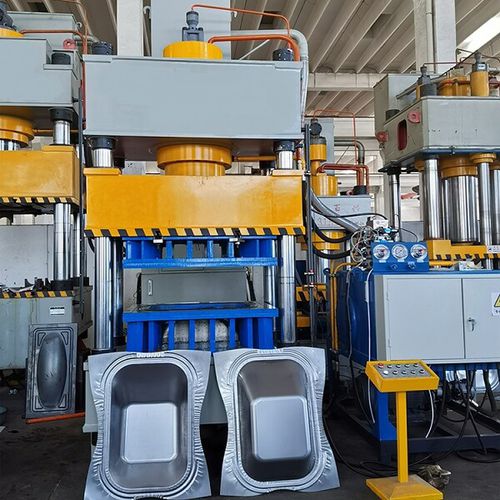

A wheelbarrow is a small vehicle propelled by human power. It is ergonomic, not subject to road restrictions, and can be used on rough roads. Our wheelbarrow manufacturing machine adopts a four-column structure. It is suitable for the press forming of trolley bodies, stainless steel sinks, and other metal products. Structure of wheelbarrow-making Machine Our wheelbarrow body’s deep drawing machine has a three-beam and four-column structure. The use of finite element structural analysis and optimized design can ensure uniform stress even in the case of a large table. The slider guide is a column cylindrical guide for easy maintenance. The hydraulic control system is a two-way insert valve integrated system. The main oil pump uses a YCY14-1B constant power axial piston pump. Use the CB-B gear pump as cooling and filtering equipment. The main cylinder of the slider of this stretching hydraulic press uses a piston cylinder. The original imported U-shaped sealing ring seals the oil cylinder. Features of Wheelbarrow Manufacturing Machine 1. Electrical accessories The electrical appliances are from well-known brands such as Siemens, which are safe and reliable. The switchboard circuit is clear. It is equipped with a time relay to realize delay control. Electrical schematics are provided upon delivery allowing customers to feel more assured and worry-free. 2. PLC touchscreen control The intelligent system controls the parameters of the entire machine and adjusts the operation of each part. Parameter adjustment is quick and easy. 3. Cartridge valve system Adopt a cartridge valve integrated system to reduce leakage points.
