Spiral bevel gearbox T Series

right angleflangelow-noise

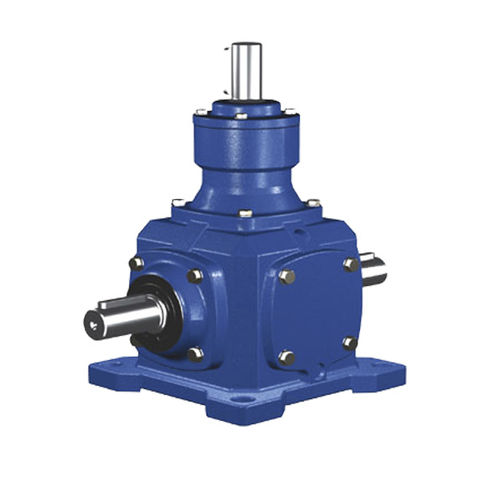

T Series Spiral Bevel Gearbox/Gear Unit Rated Power: 0.014~335kW Max. Torque: 11~3677N.m Input Speed: 10~1450r/min Ratio: 1~3 Output Speed: 3.3~1450r/min Gear Arrangement: Spiral Bevel Gears Shafts Position: Right Angle, Cross Housing: Casting Iron AOKMAN® T series spiral bevel gear units, some aliases are right angle steering gearboxes, cross steering gearboxes. Components: 1. Housing: Gray Cast Iron 2. Gear Set: Spiral Bevel Gear Pair 3. Input Configurations: Single Keyed Input Shaft Double Keyed Input Shafts 4. Output Configurations: Single Keyed Output Shaft Double Keyed Output Shafts Models: T2~T25 Features: 1. Sturdy cast iron gear box, hardened spiral bevel gears meshed in pairs, and strong bearings all contributing to reliable and optimized performance 2. A wide range of frame sizes, can be configured with different shaft configurations and gear ratio 3. Low noise, light vibration and large load capacity 4. Multiple mounting positions 5. Spiral bevel gears can be bidirectional rotation, smooth operation at low or high speed Ratio: 1:1, 1.5:1, 2:1, 2.5:1, 3:1 Applications: Side By Side Transmission Device Stereo Garage Lifting Device Playground Equipment Packing Machine Installation: Foot Mounting Flange Mounting Lubrication: Grease Lubrication
