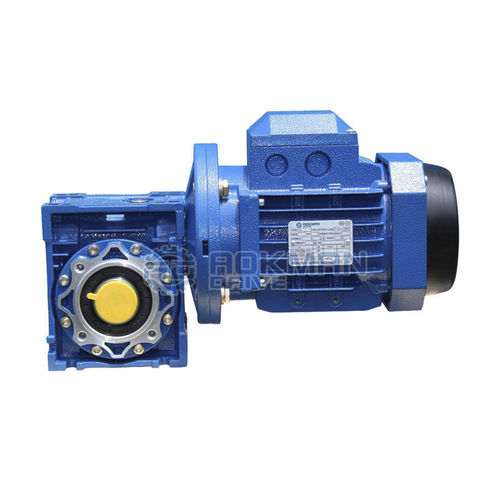

Worm gear-motor RV Series

DCACcoaxial

RV Series Worm Gear Motors Rated Power: 0.06KW~15KW Rated Torque: 1.8~1760N.m Rated Ratio: 5~100 Gear Arrangement: Worm Wheel & Worm Shaft Housing: Aluminum Alloy or Cast Iron Shafts Position: Right Angle Components: 1. Housing: Die-cast Aluminum Alloy Gearbox (RV025~RV090) Cast Iron Gearbox (RV110~RV150) 2. Worm Wheel: Wearable Tin (Stannum) Bronze Alloy, Aluminum Bronze Alloy 3. Worm Shaft: 20Cr Steel, carburizing, quenching, grinding, surface hardness 56-62HRC, 0.3-0.5mm remaining carburized layer after precise grinding 4. Input Configurations: Equipped with Electric Motors (AC Motor, Brake Motor, DC Motor, Servo Motor) 5. Applicable Motors: IEC-normalized AC Motors and Brake Motors DC Motors Servo Motors 6. Output Configurations: Keyed Hollow Shaft Output Hollow Shaft with Output Flange Plug-in Solid Shaft Output 7. Options: Worm Shaft Rear Extension, Single Output Shaft, Double Output Shaft, Output Flange, Torque Arm, Dust Cover 8. Gearbox Painting: Aluminum Alloy Gearbox: After Shot Blasting, Anticorrosion Treatment and Phosphating, Paint with the Color of RAL 5010 Gentian Blue or RAL 7035 Light Grey Cast Iron Gearbox: After Painting with Red Antirust Paint, Paint with the Color of RAL 5010 Gentian Blue Models: RV025~RV150 Features: 1. Quality aluminum alloy gear box, light weight and not rust 2. 2 optional worm wheel materials: Tin (Stannum) bronze or aluminum bronze alloy 3. Standard parts and very flexible for shaft configurations and motor flange interface 4. Several optional mounting options 5. Low noise, High efficiency in heat dissipation Ratio: 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100
