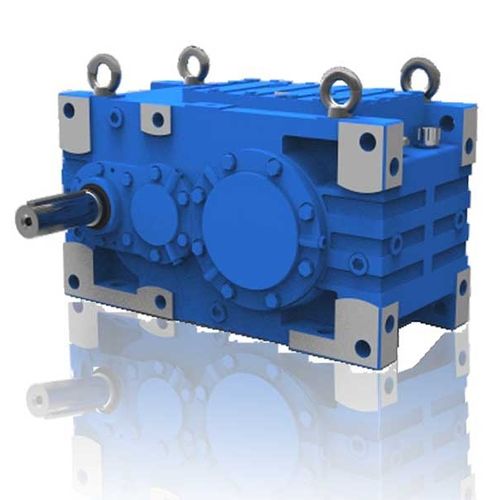

Helical gear gearbox MC Series

right anglecompactmodular

MC Series Industrial Gearbox Housing: Casting Iron Machine Base No.: 02 ~ 09 Input Power: 7.05 KW-1066 KW Output Speed: 15.5-267.1 rpm Output Torque: 8000 N.m-65000 N.m Ratio: 7.1-112 Stage: 2-3 Stage Color: Blue or Customized MC series industrial gearbox has the following 2 types: MC.H Series Parallel Shaft Gearbox MC.B Series Right Angle Gearbox Components: 1. Housing: Casting Iron Box 2. Gears: Hardened Helical Gears (MC.H Series Parallel Shaft Gearbox) Hardened Helical Bevel Gears (MC.B Series Right Angle Gearbox) 3. Shafts: Parallel Shafts (MC.H Series) Orthogonal Shafts (MC.B Series) Output Shaft: Solid Shaft, Hollow Shaft 4. Modular Accessories: Shrink Disk, Mounting Flange, Motor Flange, Cooling Fan, Torque Arm, Double Input Shaft Models: Total 8 Model Sizes: MC02 ~ MC09 Features: 1. Optional mounted by any one side of six sides. 2. Compact structure, light weight. 3. Rigid welded box structure, heavy duty and high load capacity. 4. Modular scheme and design for special conditions, adapting to the diverse needs. 5. 2 stage or 3 stage drive gearbox. Applications: Crushing, Mixing, Building Materials, Lifting, Bulk Material Handling, Chemical, Food Processing, Wood, Paper, and Environmental Protection Industries. Installation: Mounting Type: Horizontal Mounting, Vertical Mounting, Upright Mounting Installation Method: Foot Mounted, Torque Arm Mounted Lubrication: Selecting the appropriate lubrication method according to the lubricating oil level. Lubrication method: Splash lubrication - Low oil level (Horizontal Mounting) Immersion lubrication - High oil level (Vertical Mounting, Upright Mounting)
