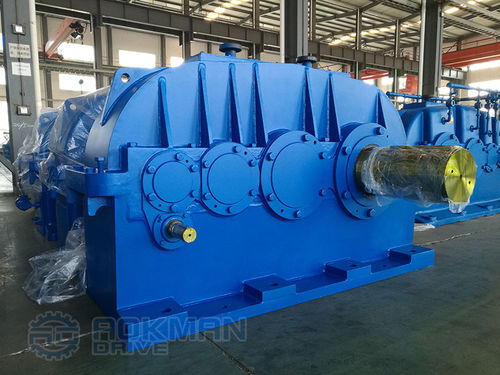

Cylindrical gearbox ZY Series

parallel-shaftlow-noiseshaft

ZY Series Parallel Shaft Gearboxes Center Distance: 80mm~710mm Ratio: 1.25~500 Input Speed: 1500,1000,750r/min Gearset: Cylindrical Helical Gears Gear Hardness: HRC54-62 Installation Form: Horizontal Shafts Position: Parallel Shaft Components: 1. Housing: Cast Iron or Steel Plate Welding 2. Gear Set: Hardened Helical Gear Pairs, Carburizing, Quenching, Grinding, Gear Hardness HRC54-62 3. Input Configurations: Single or Double Keyed Solid Shaft Input 4. Output Configurations: Single or Double Keyed Solid Shaft Output 5. Main Options: Backstop Forced Lubrication Oil Pump Cooling Fan, Cooling Coils Models: ZDY Series, ZLY Series, ZSY Series, ZFY Series Features: 1. Optional welding steel plate gear box 2. High quality alloy steel helical gears, carburizing, quenching, grinding, large load capacity 3. Optimized design, interchangeable spare parts 4. High efficiency, high reliability, long service life, low noise 5. Output shaft rotation direction: clockwise, counterclockwise or bidirectional 6. A variety of shaft configurations: single or double input and output shaft in one side or two sides 7. Optional backstop and lengthening output shafts Installation: Horizontal Mounted Lubrication: Oil Dip and Splash Lubrication Forced Lubrication Cooling: Natural Cooling Auxiliary Cooling Devices (Cooling Fan, Cooling Coils)
