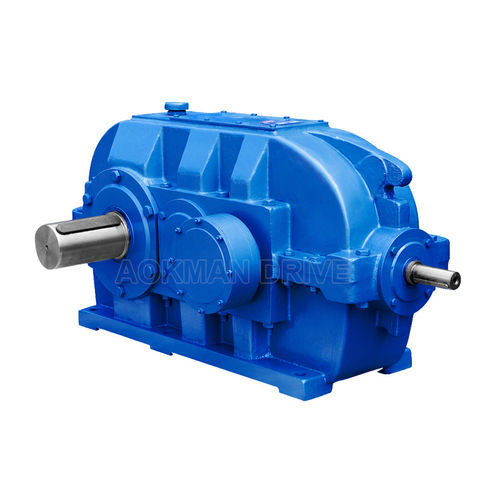

Bevel gearbox DY Series

right anglelow-noiseshaft

DY Series Right Angle Gearboxes Center Distance: 160mm~800mm Ratio: 8~500 Input Speed: 1500,1000,750r/min Gearset: Bevel Helical Gears Gear Hardness: HRC54-62 Installation Form: Horizontal Shafts Position: Right Angle Components: 1. Housing: Cast Iron or Steel Plate Welding 2. Gear Set: Hardened Helical Gear Pairs & Bevel Gear Pairs, Carburizing, Quenching, Grinding, Gear Hardness HRC54-62 3. Input Configurations: Keyed Solid Shaft Input 4. Output Configurations: Keyed Solid Shaft Output Keyed Hollow Shaft Output Hollow Shaft Output with Shrink Disk 5. Main Options: Backstop Forced Lubrication Oil Pump Cooling Fan, Cooling Coils Models: DBY Series, DCY Series, DFY Series Features: 1. Optional welding steel plate gear box 2. High quality alloy steel bevel helical gears, carburizing, quenching, grinding, large load capacity 3. Optimized design, interchangeable spare parts 4. High efficiency, high reliability, long service life, low noise 5. Output shaft rotation direction: clockwise, counterclockwise or bidirectional 6. Optional backstop and lengthening output shafts Installation: Horizontal Mounted Lubrication: Oil Dip and Splash Lubrication Forced Lubrication Cooling: Natural Cooling Auxiliary Cooling Devices (Cooling Fan, Cooling Coils)
