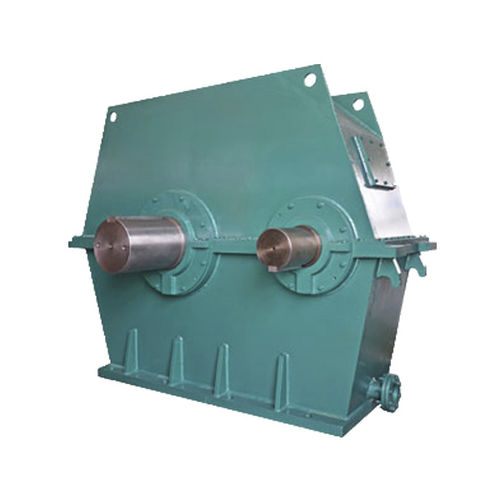

Helical gear gearbox MBY/MBYX Series

coaxialmodularlow-noise

MBY/MBYX Series Edge Drive Mill Gearboxes Rated Power: 200kW~5000kW Ratio: 4:1~7.1:1 Center Distance: 400~1100mm Gearset: Parallel Shaft Helical Gears Shafts Position: Parallel Shaft Mounted: Horizontal Mounting Housing: Cast Iron,Steel Plate Welding AOKMAN® superior performance and specially designed MBY/MBYX series edge drive mill gearboxes act as the primary gearbox for edge drive device of tube mills. Components: 1. Gearbox Housing: Cast Iron, Steel Plate Welding 2. Gearset: 1 Stage Hardened Helical Gears with Parallel Shaft 3. Input Configurations: Keyed Solid Shaft Input 4. Output Configurations: Keyed Solid Shaft Output 5. Main Options: Auxiliary Drive Lubrication Oil Station Models & Parameters: MBY400~MBY1100 (Ratio: i=4, 4.5, 5, 5.6, 6.3, 7.1) Output Shaft Diameter: 160~360mm MBYX800~MBYX1000 (Ratio: i=4.5, 5, 5.6, 6.3, 7.1) Output Shaft Diameter: 280~320mm Features: 1. Optimized meshing accuracy of gears, lower noise, and high efficiency 2. The gearbox housing is analyzed and optimized by FEM, in order to ensure less deformation during operation process, and more stable operation 3. Secured manufacturing quality and higher reliability 4. Highly modular design, multiple optional accessories 5. Short delivery time, cost-effective gearbox for tube mills 6. Parallel shaft gearbox MBY series has single or double input shaft and output shaft in one side or two sides 7. Customizable sizes and configurations according to the requirements Applications: Tube Mills, Cement Mills, Coal Mills Applied to crushing ores, coal sheets, cement clinker in building materials, coal, mine, metallurgy, and chemical industries
