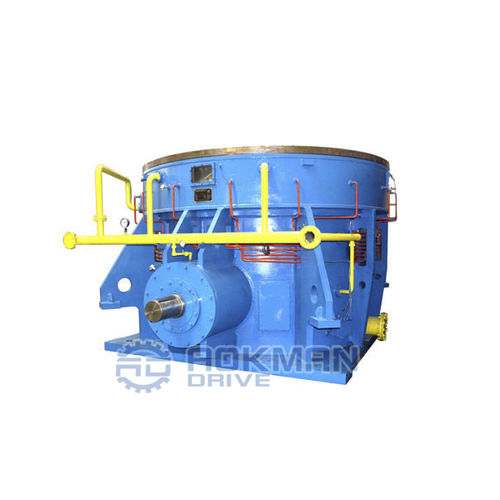

Vertical gearbox MLX Series

bevelcoaxiallow-noise

MLX Series Vertical Mill Gearboxes Rated Power: 50kW~9000kW Ratio: Maximum i=80 Gearset: Bevel & Planetary Gears Shafts Position: Right Angle Mounted: Vertical Mounting Housing: Cast Iron Vertical mills require extremely high rated power and extremely high usability. AOKMAN® MLX series vertical mill gearboxes as the key component of vertical mills, are used for transmitting power, reducing the motor speed to reach the rotating speed required by the mill during grinding process, and supporting the millstone. High axial force and partial radial force generated during the grinding process are transmitted to the mill foundation through thrust bearing and the housing. Components: 1. Gearbox Housing: Cast Iron 2. Gearset: MLY Series: 2 Stage, 1 Stage Spiral Bevel Gear Pair + 1 Stage Planetary Gear Pair MLXSD Series: 3 Stage, 1 Stage Spiral Bevel Gear Pair + 1 Stage Helical Gear Pair + 1 Stage Planetary Gear Pair MLXSS Series: 3 Stage, 1 Stage Spiral Bevel Gear Pair + 2 Stage Planetary Gear Pair 3. Input Configurations: Keyed Solid Shaft Input 4. Output Configurations: Mounting Circular Disc for Connection with Millstone Models & Parameters: MLX Series: Rated Power: P=50kW~4000kW Ratio: Maximum i=50 Models: MLX5~MLX500 Input Shaft Diameter: 65~250mm Input Shaft Center Height: 260~1100mm Mounting Circular Disc Diameter: 980~3850mm MLXSD Series Rated Power: P=1400kW~7000kW Ratio: Maximum i=65 MLXSS Series Rated Power: P=2000kW~9000kW Ratio: Maximum i=80
