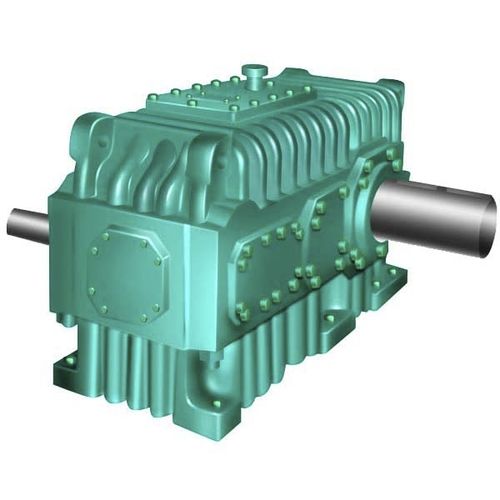

Spiral bevel gear reducer DP,DR Series

cylindricalright anglemodular

DP,DR Series Heavy Duty Modular Gear Reducers Input Speed: ≤1500r/min Ratio: 1.25~400 Gear Tangential Velocity: ≤20m/s Working Temperature: -40℃~45℃ Mounted: Horizontal or Vertical Housing: Cast Iron Shafts Position: Parallel,Right Angle AOKMAN® Heavy Duty Modular Gear Reducers include 2 series: DP Series Parallel Shaft Modular Gear Reducers & DR Series Right Angle Modular Gear Reducers. Components: 1. Gearbox Housing: Cast Iron 2. Gearset: DP Series: DP1~DP4 1~4 Stage Modular Cylindrical Gears DR Series: DR2~DR4 1 Stage Spiral Bevel Gear Pair + 1~3 Stage Modular Cylindrical Gears 3. Input Configurations: Keyed Solid Shaft Input 4. Output Configurations: Keyed Solid Shaft Output Features: 1. Highly modular design, high versatility and interchangeability for the main parts 2. Optimally designed gearbox housing conducive to heat dissipation 3. Gears and pinion shafts are processed by carburizing, quenching, grinding and gear profile modification 4. Low vibration, low noise, high load capacity and high efficiency Installation: Horizontal Mounting Vertical Mounting Lubrication: Oil Dip and Splash Lubrication Circulating Oil lubrication Cooling: Natural Cooling Auxiliary Cooling Devices (Cooling Fan, Cooling Coils)
