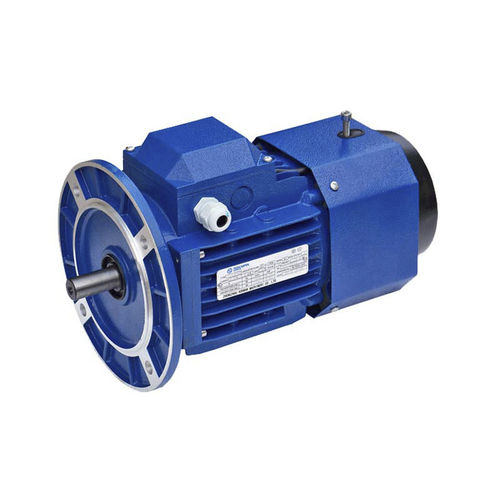

Induction motor YEJ Series

DCwaterproofIP54

YEJ Series Electromagnetic Brake Induction Motors Power: 0.12 kW~22 kW Poles: 2P, 4P, 6P Frequency: 50Hz/60Hz Protection Class: IP54, IP55, IP56 Insulation Class: F Bearing: C&U, NSK, SKF Brake: Electromagnetic Brakes AOKMAN® YEJ series electromagnetic brake 3 phase asynchronous motors (induction motors) adopts IEC standards, ABB Motor square design, cast aluminum housing, detachable mounting feet. Dustproof and waterproof, low noise, low vibration, energy saving, long service life. Components: 1. Housing: Die-casting Aluminum 2. Shaft: 40Cr 3. Magnet Wires: QZ-2/155, QZ-2/180 4. Stator & Rotor Core: Silicon Steel Sheets DW470, DW600 5. Bearings: C&U, NSK, SKF Models & Parameters: Voltage: 380V Frequency: 50Hz/60Hz Power: 0.12 kW~22 kW (0.16HP~30HP) Poles: 2P, 4P, 6P Output Speed: 3000RPM, 1500RPM, 1000RPM Frame Sizes: H63~H180 Shaft Diameter: Φ11~Φ48 Ingress Protection: IP54, IP55, IP56 Insulation Level: F Duty: Continuous duty (S1) Cooling: IC411 Brake: 96V DC Supply Electromagnetic Brakes Mounting Options: IM B3 IM B5, IM B14 IM B34, IM B35
