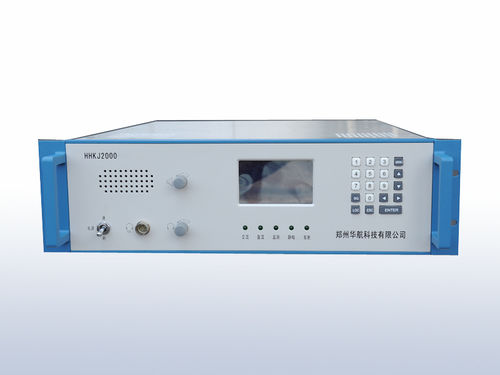

VHF transceiver HHKJ2000

compact

HHKJ2000 VHF Transceiver is the improved unit of downsized HHKJ2000 VHF Transmitter. It keeps the function and characteristics of the old type, but its width of the case is modified into half size of the original (i.e.19”/2 inch). The unit is characterized by compact structure, excellent performance and easy to install. It can work as a transceiver if obligated a receiving module position which enables it to work as a transceiver. *Frequency range: 118MHz ～ 155.975MHz *Channel spacing: 25kHz *Frequency error : ±5ppm *Modulation type: A3E *Carrier power: ≥5 W（1W ～ 7W，settable） *Modulation depth: 30% ～ 90%，limiter at 99% *Modulation distortion: ≤5% *AF response: -3dB ～ +1dB *Harmonic emission: ≤-80dBc *Spurious emission: ≤－90dBc *Spurious frequency offset: ≤2kHz *Carrier noise level: ≤-45 dB *PTT response time: ≤20ms *Antenna connector: N female，50Ω *Operating temperature: -20 ℃ ～ +55 ℃ *Storage temperature: -30 ℃ ～ +70 ℃ *Relative humidity: 95%,（+40 ℃±2 ℃） *Dimensions: 222 mm × 130 mm × 496 mm *Weight: ≤12 kg
