External antenna HT100-400Efor vehicles
Add to favorites
Compare this product
Characteristics
- Type
- external
- Applications
- for vehicles
- Frequency
Max.: 400 Hz
Min.: 108 Hz
- Gain
1 dB
Description

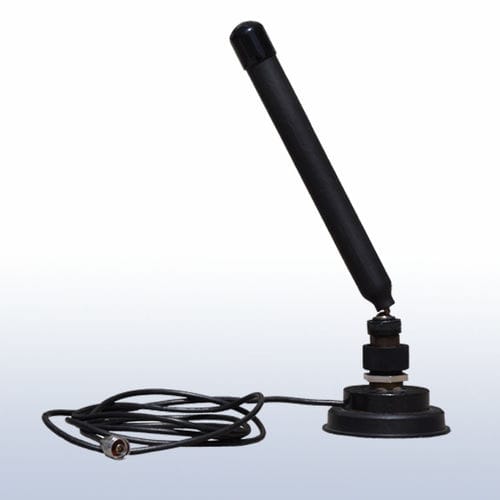

HT100-400E Vehicle USW sucker Antenna is characterized by small size, high mechanical strength, and easy to install. It mainly applies to vehicle USW to air command communication, and it is also used for ground to ground communications.
■ Technical Data
*VSWR: ≤2.5
*Gain: 108 MHz～200 MHz ≥ -2 dBi
*200 MHz～400 MHz ≥ 1 dBi
*Polarization: vertical
*Connector: N-male
*Mounting type: sucker-mounted
*Power-handling capacity: 20 W CW
*Weight: 1.5kg
