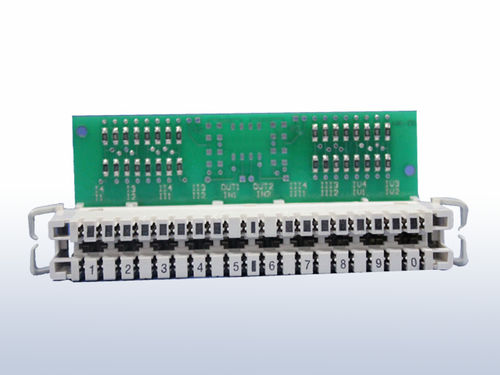

Passive distributor HKADN

The Audio Distributors are mainly used as a passive AF line combiner or splitter. Each modular consists of four identical AF combiner/splitter. The HKADN is used at the Air-traffic Control Center, while the HKADP is used at a remote radio site. The HKADP has two identical optocoupler blocks which makes it easy to control PTT and SQ signal. Technical Data *Audio frequency:0.3kHz ～ 3.4 kHz *Input and output impedance Nominal(port 1,2,3): 600Ω *Input and output impedance High(port 4): typ. 4kΩ *Operating voltage(only HKADP) Positive: +24V ～ +48V DC *Operating voltage(only HKADP) Negative: -24V ～ -48V DC
