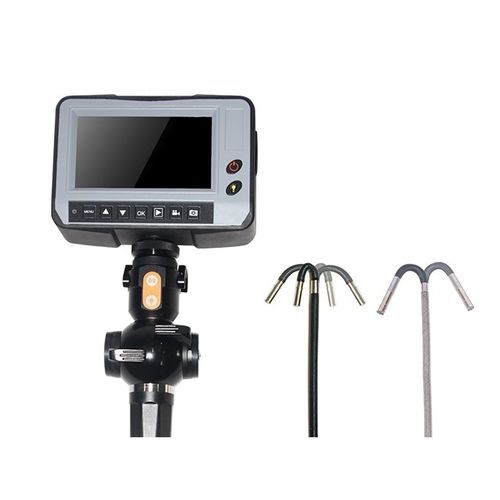

Portable videoscope

flexiblefor remote visual inspectionfor pipe inspection

Handheld portable Endoscope Is a set of optical, precision machinery, electronic technology and imaging technology in one of the new nondestructive testing instrument, simple operation; to inspect all kinds of industrial piping or narrow space inside the complex equipment corrosion, crack, weld, foreign body, wear and internal parts processing and other conventional NDT technique cannot touch the non visual parts surface defects can detect detailed. 1. High-sensitivity operating handle, multi-layer braided insertion tube, wear-resistant and anti-drop engineering alloy shell, the whole machine is portable, durable, and clear recording. 2. Removable rechargeable lithium battery. 3. Used to detect cracks, defects, breakages, etc. of long-distance pipelines with diameters of 4mm-500mm. 4. Adopt high-definition 4.3 Inch TFT LCD screen, high-definition image sensor, long-distance image transmission technology. 5. 5 layers tungsten wire cable. 6. Mechanical control two direction, unilateral bending up to 180 degrees, the advantages of flexible control, improve work efficiency, relatively low failure rate of electric power steering. • Screen dimension : 4.3/5inch • Direction : 2 way /4way • Resolution : megapixel • Probe diameter : 2.8mm/3.9mm/6mm/8mm • Length of the detection line : 1.5m-10m • Illuminance : 50000 • Waterproof : IP67 • Data Storage Option : Memory Card(Max.32G)
