IGBT module full-bridge inverter technology, constant current and constant voltage, small current ripple, and effectively solves the harmonic problem. High-reliability product(Exceeded 10,000 hours on single charger operating time) with environmental suitability(Industrial standard).
Characteristic

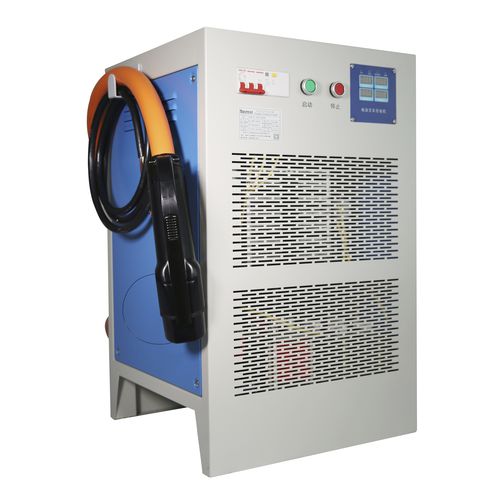

GGCF series high frequency lithium battery chargers has high conversion and charging efficiency, providing stable voltage and high steady current, smooth output current waveform and small ripple. In addition, by using high frequency switching technology, the charger has features of power saving, easy controlling, wide range current adjustable, small size and light weight.
Working principle
The charger is mainly composed of a rectifying & filtering circuit, a high-frequency switching conversion circuit, a PWM control circuit, an output rectifying & filtering circuit, a reverse protection circuit, a voltage stabilization & limit circuit,a current stabilization & limit circuit, a protection circuit and an auxiliary power supply circuit. In addition,the charger has CAN-BUS communication function.
