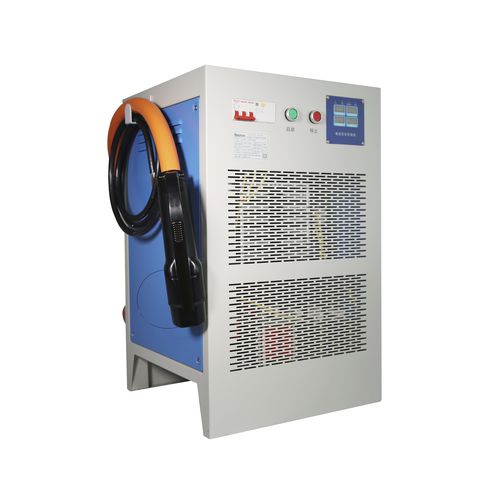

Floor-standing battery charger GGCF-B80V100A

lithiumfor forklift trucksfor railway applications

Characteristic GGCF series high frequency lithium battery chargers has high conversion and charging efficiency, providing stable voltage and high steady current, smooth output current waveform and small ripple. In addition, by using high frequency switching technology, the charger has features of power saving, easy controlling, wide range current adjustable, small size and light weight. Working principle The charger is mainly composed of a rectifying & filtering circuit, a high-frequency switching conversion circuit, a PWM control circuit, an output rectifying & filtering circuit, a reverse protection circuit, a voltage stabilization & limit circuit,a current stabilization & limit circuit, a protection circuit and an auxiliary power supply circuit. In addition,the charger has CAN-BUS communication function.
