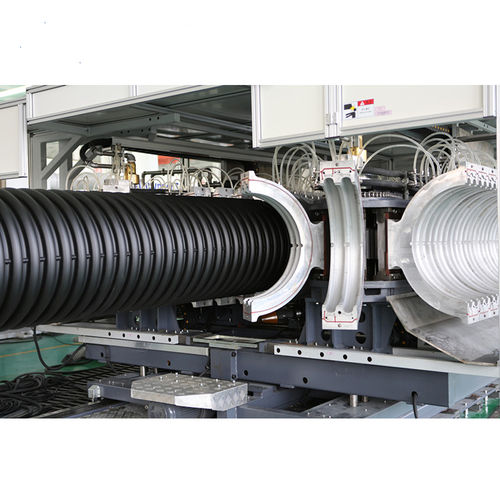

Double-wall corrugated pipe extrusion line ZC-1000H for corrugated pipefor stormwater pipesfor electrical conduits
Add to favorites
Compare this product
Characteristics
- Type
- for corrugated pipe, for stormwater pipes, for electrical conduits
- Treated material
- for PVC, for PP, for PE, for HDPE
- Other characteristics
- with water cooling
- Applications
- for drainage pipes, for large-diameter pipes, for sewage pipes, for double-wall corrugated pipe, for cable duct, double-walled
Description
Low energy consumption help to cut production cost.
Efficient vacuum system for forming perfect pipes.
Mould block temperature control system helps to optimize the pipe quality both appearance and inside.
Easy and quick changeover between different sizes of moulds.
The complete extrusion line runs full-automatically.
Corrugator and extruders are synchronously controlled.
Harden treated screw and barrels for longer life span and durability.
Remote Service is available.
Toolings (moulds) compatible to ZC-300H line, ZC-600H line and ZC-1200H.
Field of application
Infrastructure and civil engineering.
Conveyor pipes.
Main Technical Parameters
Pipe Range Min ID100mm
Pipe Range Max OD1000mm
Installed gross capacity560kw
Normal working power340kw
Maximum production speed6.9m/min
Maximum Output1350kg/hr
Overall dimension(L*W*H)38m×6.8m×4m
