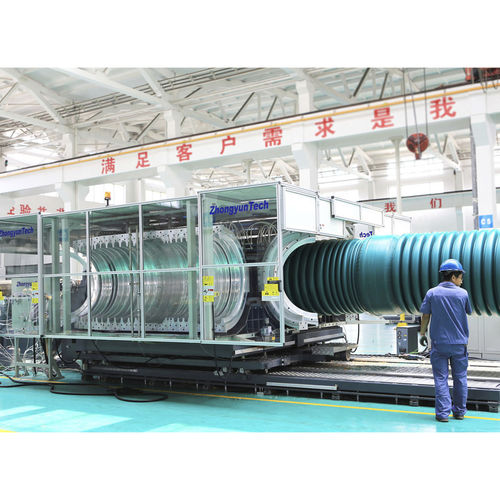

Corrugated pipe machine ZC-1500Hfor stormwater pipesfor HDPEfor PP
Add to favorites
Compare this product
Characteristics
- Type
- for corrugated pipe, for stormwater pipes
- Treated material
- for PP, for HDPE
- Other characteristics
- with water cooling
- Applications
- for drainage pipes, for sewage pipes, for double-wall corrugated pipe
Description
Low energy consumption help to cut production cost.
Efficient vacuum system for forming perfect pipes.
Mould block temperature control system helps to optimize the pipe quality both appearance and inside.
The complete extrusion line runs full-automatically.
Corrugator and extruders are synchronously controlled.
Harden treated screw and barrels for longer life span and durability.
Remote Service is available.
Toolings (moulds) compatible to ZC-600H line, ZC-1000H line, ZC-1200H and ZC-2000H.
Field of application
Protection pipes for community heating systems.
Infrastructure and civil engineering.
Main Technical Parameters
Pipe Range Min ID300mm
Pipe Range Max OD1500mm
Installed gross capacity1050kw
Normal working power504kw
Maximum production speed3.0m/min
Maximum Output1300kg/hr
Overall dimension(L*W*H)47mx6.5mx4.5m
