Aluminum plate
for aerospace applications

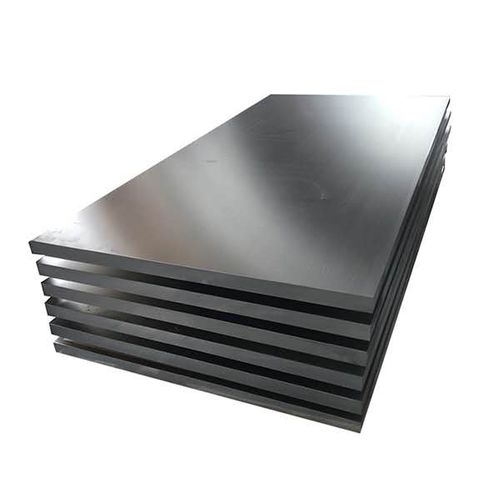

Aluminum plate - Zhu Xia Metal Products Co., Ltd. - for aerospace applications

Add to favorites

Compare this product

Characteristics

Shape

plate

Other characteristics

for aerospace applications

Thickness

6 mm, 100 mm
(0.236 in, 3.937 in)

Max.: 260 mm
(10.236 in)

Min.: 4 mm
(0.157 in)

Width

Max.: 3,800 mm
(149.61 in)

Min.: 1,200 mm
(47.24 in)

Mechanical resistance

585,000,000 Pa
(84,847.1 psi)

Max.: 590,000,000 Pa
(85,572.3 psi)

Min.: 517,000,000 Pa
(74,984.5 psi)

Elasticity

555,000,000 Pa
(80,495.9 psi)

Max.: 565,000,000 Pa
(81,946.3 psi)

Min.: 550,000,000 Pa
(79,770.8 psi)

Description

7150 T7751 Aluminum Alloy Plate Applied To Wing Panels of Aircraft Alloy: 7150 Temper: T7751 Thickness: 4mm-260mm Width: 1200mm-3800mm Surface: mill finish or at request Standard: AMS4252A Product Description 7150 aluminum alloy is one of the new aluminum alloy materials developed in China and belongs to the Al-Zn-Mg-Cu series aluminum alloy. Aluminium / aluminum 7150 alloy is chiefly used in high strength applications such as aircraft components manufacturing. When the 7150 T7751 aluminum alloy has a suitable texture of coarse and long recrystallized grains and a fine equiaxed grain structure, it can obtain higher strength in the direction of the coarse grain length. SPECIFICATION 7150 T7751 aluminum alloy plate: Regular thickness range: 4-260mm Regular width range: 1200-3800mm * Remarks: Specific requirement of alloy, temper or specification can be discussed at your request.
