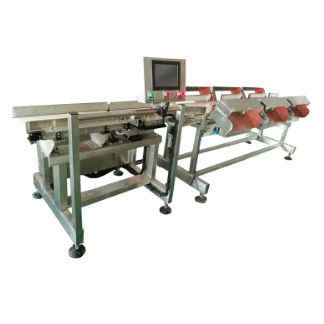

Sorting machine for the food industry DHWS400*150-4

process

Casting/Industrial components weight sorting machine DHWS400*150-4 Widely used in fishery & seafood, poultry & meat, vegetable & fruit, medicinal materials, hardware, plastic products, chemical materials etc. TECHNICAL PARAMETER Model - DHWS400*150-4 Sorting product - For Casting/Industrial components etc. Weight range (1g-500g) Max size: (200*100*50 mm L*W*H) Weighing capacity - 500g Minimum graduation - 0.01g Sorting speed - 120 pcs/min Weighing accuracy - ±1-3g Weighing belt size - 400mm*150mm (L*W) Construction - Waterproof and moisture protection (International standard IP65) Weighing direction - From left to right (Facing the operation display) Weighing sensor - Germany HBM Control system - Dahang (Independent R & D) Operation display - 8 inches touch screen Weighing data output - USB port Rejecting type - Flapper rejector Products parameters - Can restore and recall 100 products Belt conveyor - Food grade white color Belt Language - English Height of conveyor - 750+60mm (Customized) Power supply - Single phase AC220V±10%, 50/60HZ Construction - SUS304, polishing Using environment - High humidity, high/low temperature/Normal Package - With plastic film inside and professional export wooden case outside. HS code - 84232010.00 FEATURES ● 3 conveyors: Buffering belt, weighing belt and sorting conveyor. ● High accuracy: ±1-3g ● High sorting speed up to 7200 pcs/min adjustable ● Strong stainless steel 304 structure ● Waterproof and moisture protection, anti - condensation device in electric box. Control board Potting process. ● Reliable and stable weighing and control system ● Weighing data USB port download in Excel sheet.
